Nordet 36

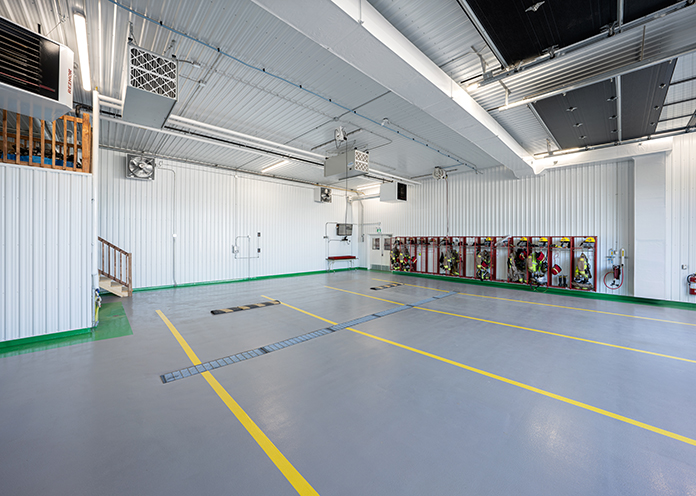

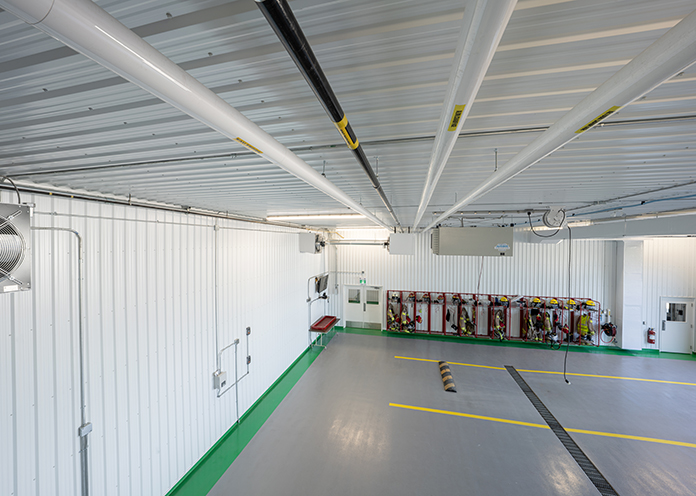

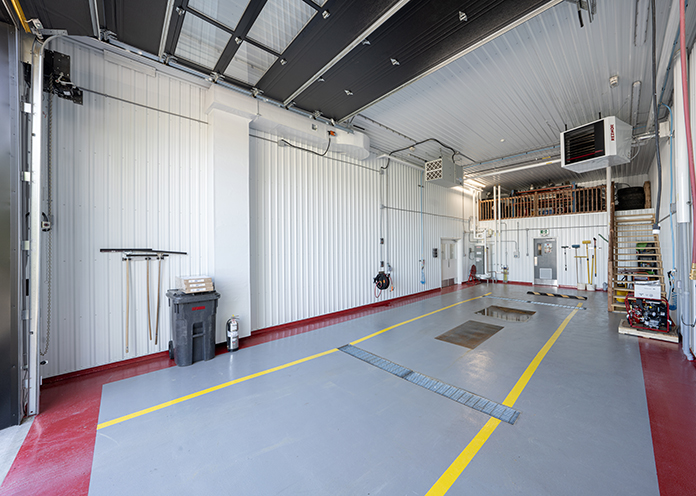

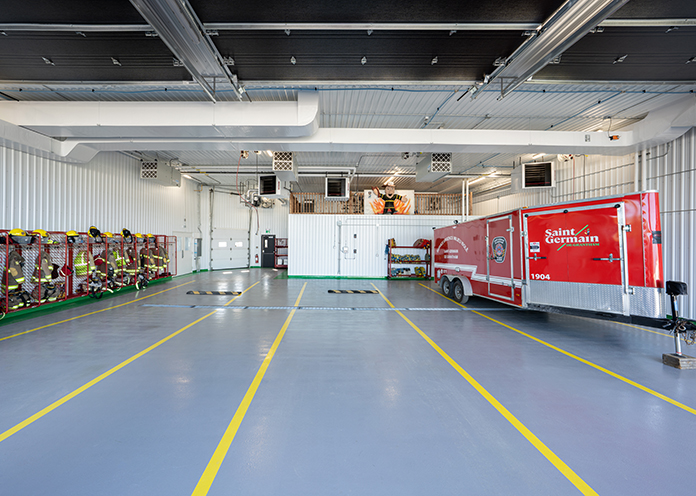

Proudly made in Quebec at our Drummondville plant, Agway’s Nordet 36 profile is the newest addition to our agricultural product lineup. It is versatile, lightweight, and economical, making it easy to install and a popular profile for large projects. The Nordet 36 profile is a wall cladding for agricultural applications, and captures the classic barn look. It can also be used for liner panel in Industrial applications. For convenience and simplicity, these versatile panels can be installed vertically or horizontally on a wall, and, once installed, are extremely weather resistant and virtually maintenance free. Available in a wide range of colours, Agway’s Nordet 36 profile, combined with available trims, vents, fasteners and other accessories, provides a complete cladding solution for any project.
Measurement Type
Profile Picture
1. Steel conforms to ASTM A653.
2. Section properties are in accordance with CSA-S136-07.
3. Values in row “S” are based on strength.
4. Values in row “D” are based on a deflection limit of 1/180 of the span.
5. Web crippling not included in strength values. See example calculation in notes to designer.
6. Contact the sales department for stocked colours and gauges.
7. The load table contained on this data sheet was prepared by Dr. R.M. Schuster P.Eng. Professor Emeritus of Structural Engineering, University of Waterloo, Ontario, Canada.
8. Plain or painted Galvalume sheets should not be used on Animal Confinement Buildings.
1. Steel conforms to ASTM A653.
2. Section properties are in accordance with CSA-S136-07.
3. Values in row “S” are based on strength.
4. Values in row “D” are based on a deflection limit of 1/180 of the span.
5. Web crippling not included in strength values. See example calculation in notes to designer.
6. Contact the sales department for stocked colours and gauges.
7. The load table contained on this data sheet was prepared by Dr. R.M. Schuster P.Eng. Professor Emeritus of Structural Engineering, University of Waterloo, Ontario, Canada.
8. Plain or painted Galvalume sheets should not be used on Animal Confinement Buildings.
Specifications
| GAUGE | LENGTH | COVERAGE | ||
|---|---|---|---|---|
| MINIMUM | MAXIMUM | MINIMUM | MAXIMUM | |
| 29 | 26 | 30 | 480 | 36 |
| GAUGE | LENGTH | COVERAGE | ||
|---|---|---|---|---|
| MINIMUM | MAXIMUM | MINIMUM | MAXIMUM | |
| 29 | 26 | 762 | 1219.2 | 914 |
Section Properties
| BASE STEEL THICKNESS |
WEIGHT G90 |
YIELD STRESS |
SECTION MODULUS |
DEFLECTION MOMENT OF INERTIA |
SPECIFIED WEB CRIPPLING DATA(LB) |
||||
|---|---|---|---|---|---|---|---|---|---|
| in | psf | ksi | MID SPAN in 3 |
SUPPORT in 3 |
MID SPAN in 4 |
END Pe1 |
END Pe2 |
INTERIOR Pi1 |
INTERIOR Pi2 |
| 0.0135 | 0.63 | 80 | 0.0194 | 0.0265 | 0.0100 | 57.1 | 14.3 | 95.5 | 16.2 |
| 0.0180 | 0.83 | 33 | 0.0325 | 0.0356 | 0.0147 | 44.3 | 11.1 | 76.0 | 12.9 |
| BASE STEEL THICKNESS |
MASS Z275 |
YIELD STRESS |
SECTION MODULUS |
DEFLECTION MOMENT OF INERTIA |
SPECIFIED WEB CRIPPLING DATA(LB) |
||||
|---|---|---|---|---|---|---|---|---|---|
| mm | kg/m | MPa | MID SPAN x10 3mm3 |
SUPPORT x10 3mm3 |
MID SPAN x10 3mm3 |
END Pe1 |
END Pe2 |
INTERIOR Pi1 |
INTERIOR Pi2 |
| 0.343 | 3.07 | 550 | 0.97 | 1.42 | 0.0135 | 0.83 | 0.21 | 1.39 | 0.24 |
| 0.457 | 4.07 | 230 | 1.74 | 1.91 | 0.0199 | 0.65 | 0.16 | 1.12 | 0.19 |
